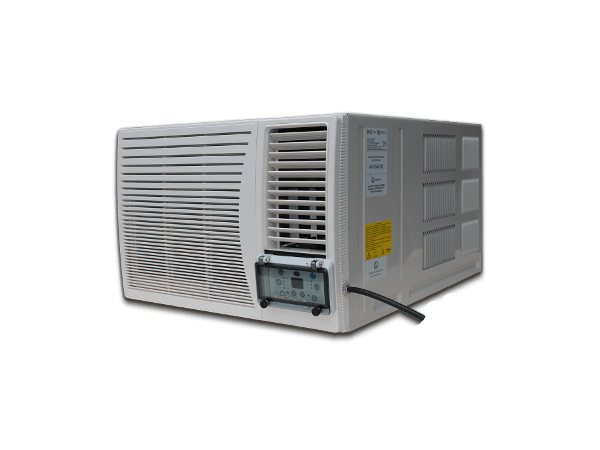

Artidor's explosion-safe AR-054 window air conditioners are made to safely provide a pleasant climate in an area that can contain an explosive atmosphere as a result of released gas.
Due to the use of DC inverter technology, the window air conditioners meet the strict Ecodesign requirements laid down in the European directive 2009/125/EC. The offered solution is not only safe but also energy efficient.
No connections need to be made to the cooling system to install the compact window air conditioner and therefore there is no need to call in a specialized refrigeration technician. The mechanical and electrical installation of the unit is also extremely simple and can be accomplished quickly and efficiently.
The Artidor AR-054 air conditioners are explosion-safe and certified in accordance with the European ATEX Directive 2014/34/EU (ATEX 114) and they are CE marked. The window air conditioners comply with the requirements for product category 3 G and are suitable for use in Zone 2.
Share this page:
Features
- ATEX certified
- Complies to the European EdoDesign directive
- CE marked
- Explosion-safe for gasses and vapours
- Suitable for use in Zone 2
- DC inverter technology
- Cooling only
- Very compact, easy installation
- Environment friendly refrigerant R32
Technical properties
-
- Explosion safety:
- II 3 G Ex ec h ic mc IIC T3 Gc
-
- European directives:
- 2014/34/EU (ATEX 114), 2014/30/EU (EMC) and 2009/125/EC (EcoDesign)
-
- Applied standards:
- EN 60079-0:2018, EN 60079-7:2015 / A1:2018, EN 60079-11:2012, EN 60079-18:2015 / A1:2017, EN 80079-36:2016 and EN 80079-37:2016
-
- Certification:
- EU Verklaring van Overeenstemming / Unit Assessment Certificaat
-
- Power supply:
- 230 V AC
-
- Mains frequency:
- 50 Hz
-
- Electrical connections:
- Fixed cable 3 x 2,5 mm², length 5 meter
-
- Ambient temperature:
- -20 °C to +45 °C
-
- Operational temperature:
- +18 °C to +43 °C
-
- Remote control:
- Infra-red remote control included
-
- Refrigerant:
- R32
Check out our other air conditioners
AR-050 Zone 1 Evaporators
Evaporators designed for use in storage of chemicals, flammable substances or charging of batteries.
Read more

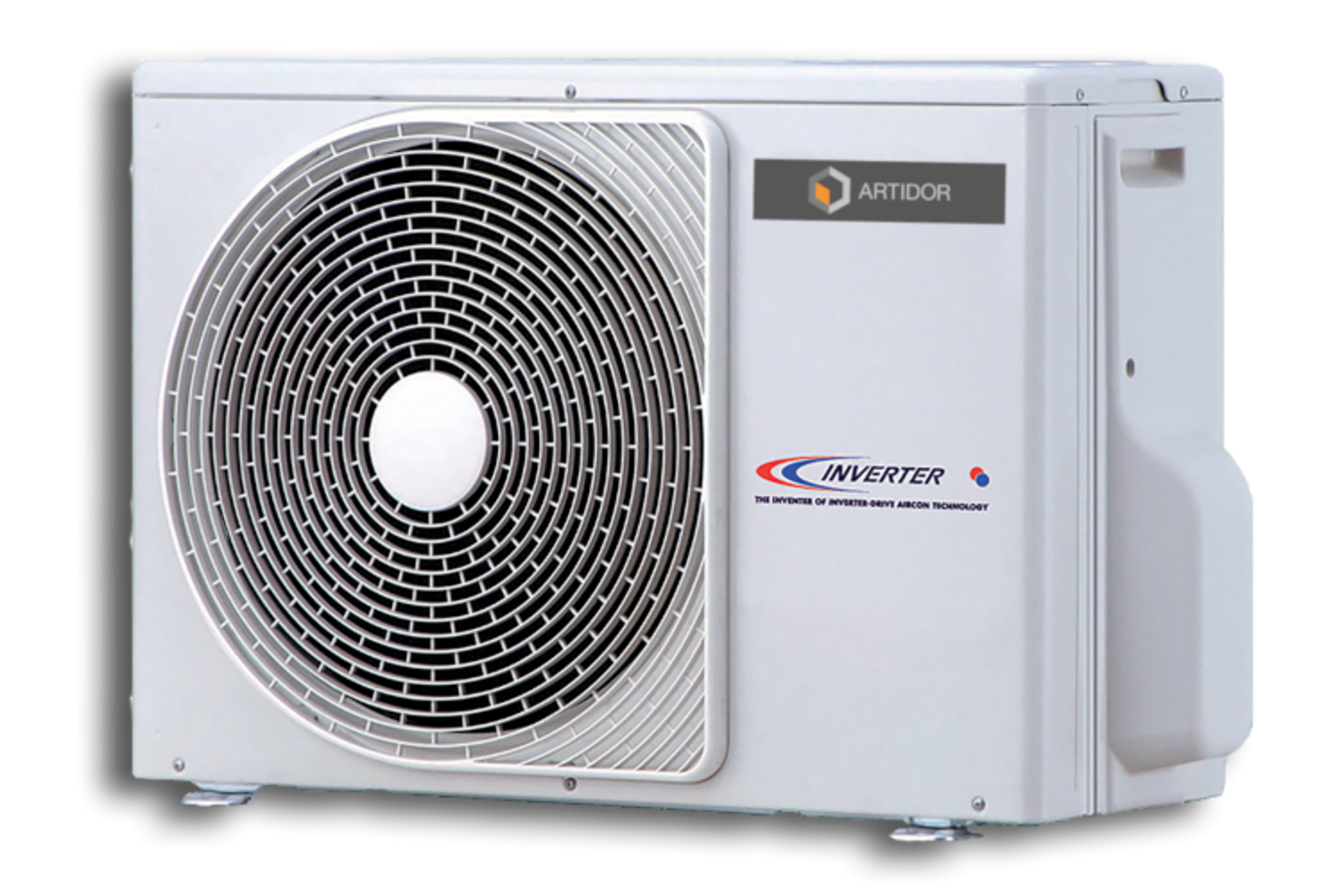

AR-051 Split systems (Toshiba)
Split systems for industrial 24/7 use, in robust, compact and corrosion-resistant executions.
Read more

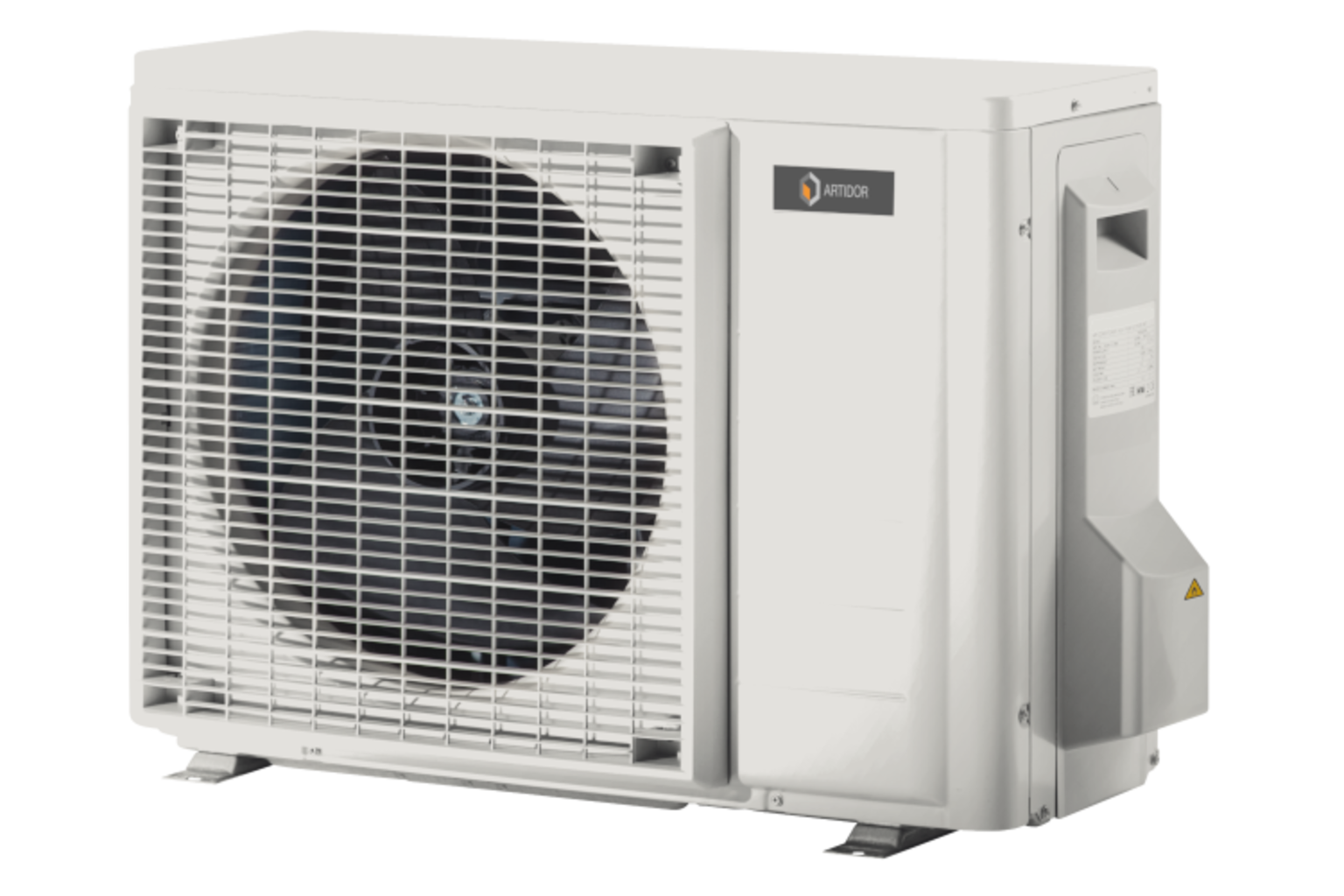

AR-052 Split systems (Daikin)
Split systems for industrial 24/7 use in robust and compact executions. Coating is optional.
Read more

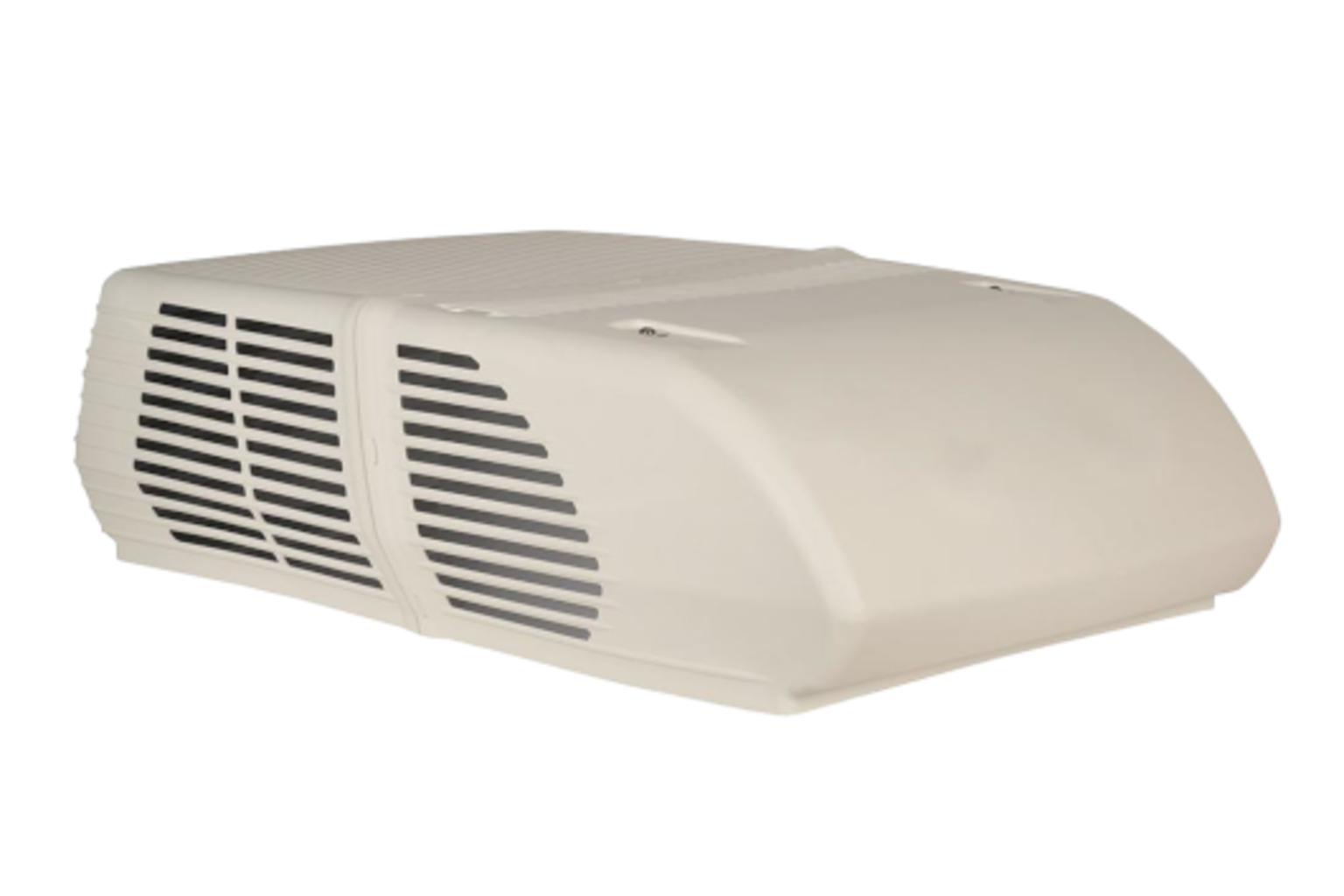

AR-053 Rooftop air conditioner
