AR-021 Motion sensor

AR-021 Motion Sensors for zone 2 and zone 22The Artidor AR-021 motion sensor is based on the latest high frequent radar technology and therefore capable of detecting even the slightest movements.

Thanks to the wide opening angle and its 8 m detection range, any movement is detected. Even through doors, glass panes and thin walls, movements will be detected.

The sensor electronics offers an electrical output that can deliver up to 4.000 VA on resistive or light inductive loads and an extra potential free contact. The intelligent, microprocessor-based sensor technology switches the light ON and OFF again after the pre-set time. Most convenient, safe and both energy and cost saving.

The motion sensor can successfully be applied in porches, circulation areas, staircases, storerooms, cold storage rooms and business areas. The motion sensor meets the latest explosion safety requirements and can be applied in a wide range of locations such as at oil and gas production sites, in chemical and petrochemical industries, the pharmaceutical industry and the food industry.

The Artidor AR-021 motion sensor is certified in accordance with European Directive 2014/34/EU (ATEX 114) for use in gas or dust hazardous areas and is CE marked.

Request information or quotation?

Contact us for more information or if you are looking for a special execution of this product.
It will be our pleasure to help you!

Contact us Request a quote

Features
  • ATEX certified
  • Suitable for use in gas and dust hazardous areas, classified as Zone 2 and 22
  • Ingress protection level IP66
  • Coated aluminum housing
  • Maximum output power 4.000 VA
  • Opening angle of 140º
  • Detection range adjustable from 1 - 8 m
  • Light sensitivity adjustable from 3 - 3.000 lux
  • Mounting bracket included
Technical properties
  • Explosieveiligheid
    II 3 G Ex nR IIC T6 Gc, II 3 D Ex tc IIIC T80°C Dc
  • Europese richtlijnen
    2014/34/EU (ATEX 114) en 2014/30/EU (EMC)
  • Toegepaste normen
    EN 60079-0:2018, EN 60079-15:2010, EN 60079-31:2014
  • Sensor
    5,8 GHz radargolven, 1 mW zendvermogen
  • Reikwijdte
    1 - 8 meter, instelbaar
  • Registratiehoek
    360° met 140° openingshoek

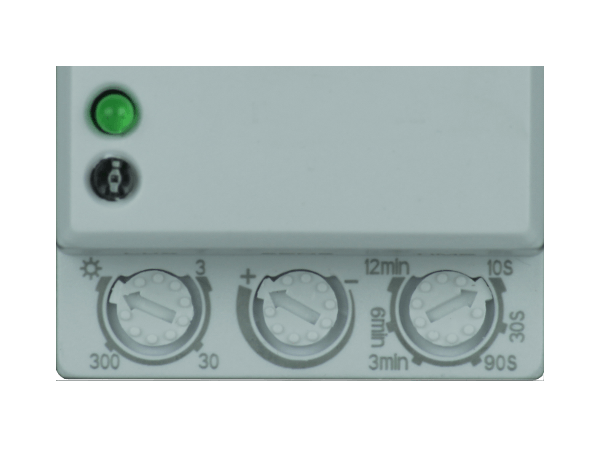

  • Schemerinstelling
    3 - 3.000 Lux
  • Tijdinstelling
    10 seconden - 12 minuten
  • Voedingsspanning
    230 V AC, 50 Hz
  • Schakelvermogen AC1
    4.000 VA (Ohmse en licht inductieve wisselstroombelastingen)
  • Nominale stroom bij 250 VAC
    16 A continu
  • Nominale stroom bij 24 VDC
    2 A (potentiaalvrije contacten 1 - 2)
  • Uitgangen
    Geschakelde 230 V AC uitgang (L', N2) en potentiaalvrij contact (1, 2)
  • Elektrische aansluitingen
    Schroefklemmen 8 x 2,5 mm²

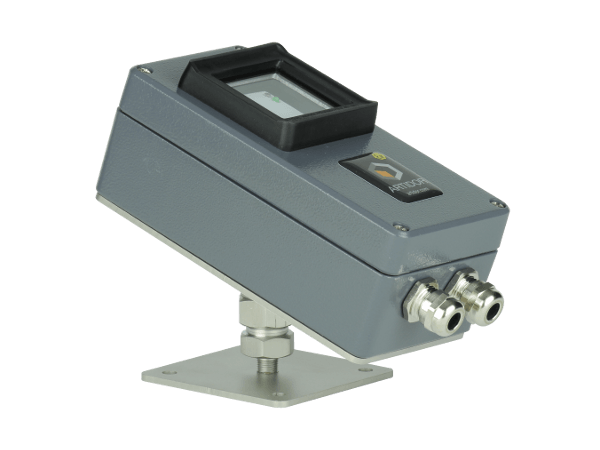

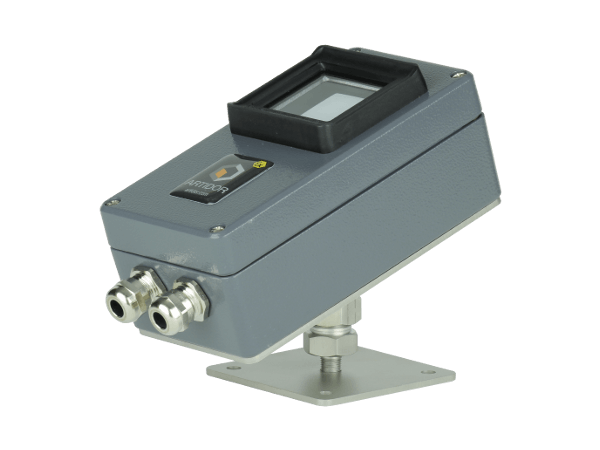

  • Materiaal
    Gietaluminium behuizing (RAL 7015, leigrijs), venster van slagvast glas in een polyamide frame

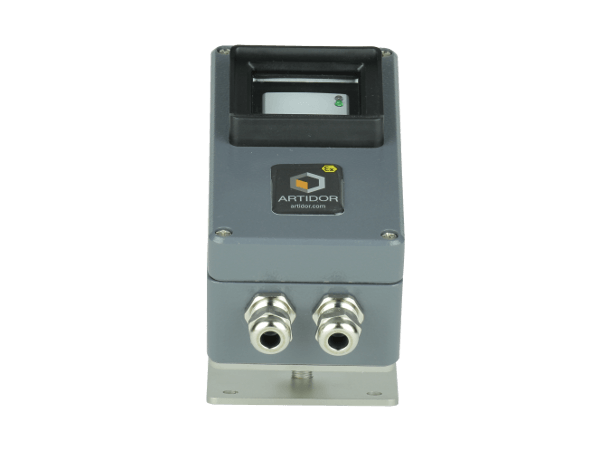

  • Aansluiting
    M20 kabelwartels (2x) geschikt voor kabeldiameters van 6 - 14 mm
  • Beschermingsgraad
    IP66 volgens EN 60529

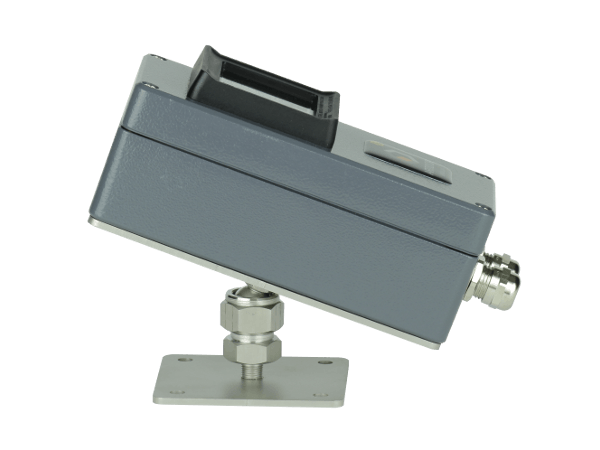

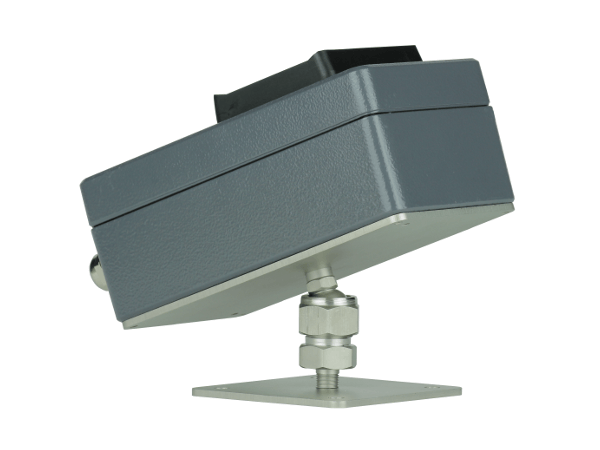

  • Montagebeugel
    Roestvaststalen montagesteun met bevestigingsgaten Ø6,5 (4x) op een afstand van 60 x 60 mm
  • Omgevingstemperatuur
    -20 °C tot +50 °C
  • Afmetingen behuizing
    160 x 80 x 128 mm (incl. montagesteun)
  • Gewicht
    1.340 gram (inclusief montagesteun)
