AR-090 Label printers

AR-030 Retaining magnets for zone 2 and zone 22

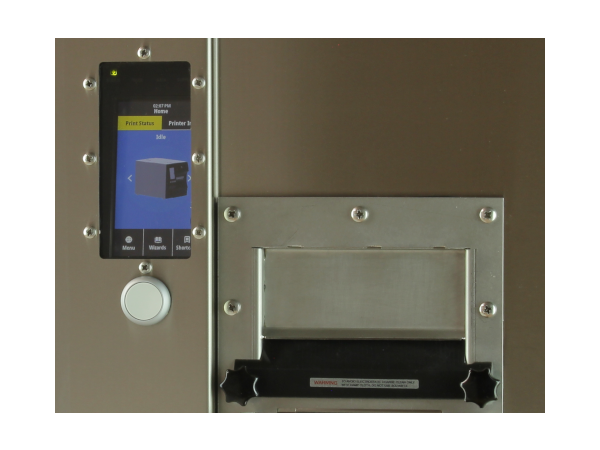

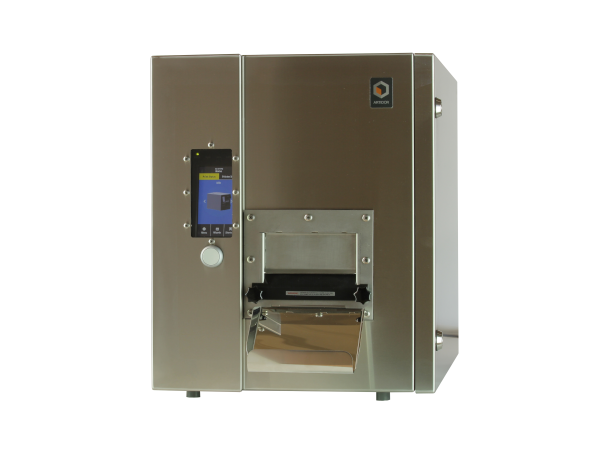

The Artidor AR-090 label printer is based on the ZT411 series of industrial printers by Zebra. They are the result of over 50 years of innovation in thermal printers.

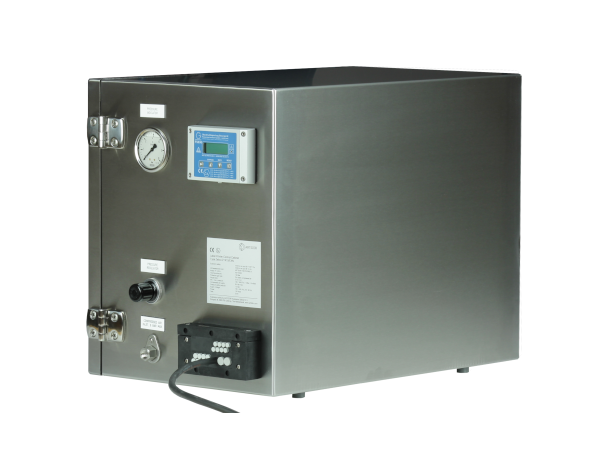

The IP54 basic version of the AR-090 label printer is suitable for an environment in which dust fibers and electrically non-conductive dust cause an explosion hazard. An overpressure system was selected for use in environments where gas or electrically conductive dust poses a hazard. Due to the slight overpressure, no gas or dust can enter the housing.

The AR-090 has a broad range of application. A suitable AR-090 is available for every environment where category 3 equipment must be used. The printer is used in very diverse production processes that require application of a sticker, e.g. in order to record the product’s production date, the batch number or the traceability.

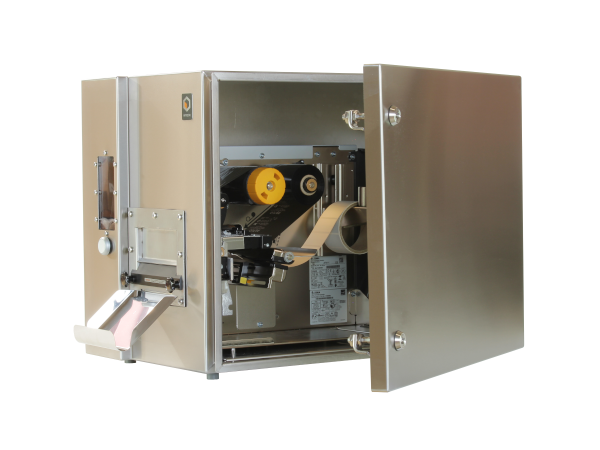

The AR-090 label printer is available in a model where the labels are printed on a contiguous strip. If needed for a particular application, there is also an AR-090 label printer with a cutting mechanism; it cuts the labels, after which they are collected in a catch basin.

The housing of the explosion-safe printer is made from 316 stainless steel and complies with the latest explosion-safe standards. The AR-090 is sold to customers in the (petro)chemical, pharmaceutical and food industry.

Request for information or quotation?

Contact us for more information or if you are looking for a special execution of this product.
It will be our pleasure to help you!

Contact us Request a quote

Features
  • Based on Zebra ZT411 series printers
  • USB and Ethernet connections
  • Printing width 103 mm
  • Resolution: 300 DPI
  • ATEX certified
  • Suitable for use in gaseous and dusty environments, zone 2 and 22
  • 316 stainless steel housing
  • Fixed power cable (length: 5 meters)
  • Optional cutting unit and catch basin
Technical properties
  • Explosieveiligheid
    II 3 G Ex Pzc IIC T6 Gc, II 3 D Ex tc IIIB T80°C Dc of II 3 D Ex Pzc IIIC T80°C Dc
  • Europese richtlijnen
    2014/34/EU (ATEX 114) en 2014/30/EU (EMC)
  • Toegepaste normen
    EN 60079-0:2018, EN 60079-2:2014, EN 60079-31:2014
  • Printer
    Zebra ZT411, optioneel voorzien van afsnijunit en opvangbakje
  • Resolutie
    300 dpi
  • Printbreedte
    104 mm
  • Printlengte
    1.854 mm
  • Communicatie
    USB and 10/100 ethernet LAN interface
  • Voedingsspanning
    100 - 240 VAC, 50 / 60 Hz
  • Elektrisch vermogen
    100 Watt
  • Elektrische aansluiting
    Vaste aansluitkabel H07RN-F 3 x 1,5 mm², lengte 5 meter
  • Behuizing
    RVS 304 behuizing, venster van slagvast polycarbonaat
  • Beschermingsgraad
    IP54 volgens EN 60529
  • Gebruikscondities
    +5 °C tot +40 °C, luchtvochtigheid 20% tot 85% niet-condenserend
  • Omgevingstemperatuur
    -20 °C tot +40 °C
  • Afmetingen behuizing
    638 x 374 x 447 mm
  • Gewicht
    39,3 Kg (Zebra ZT411 16,3 Kg, behuizing 23,0 Kg)
