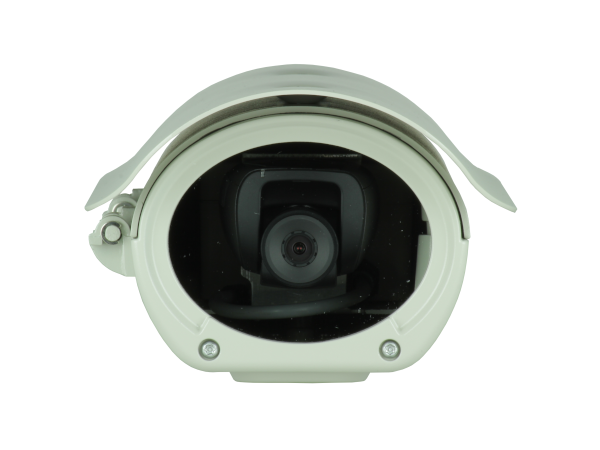

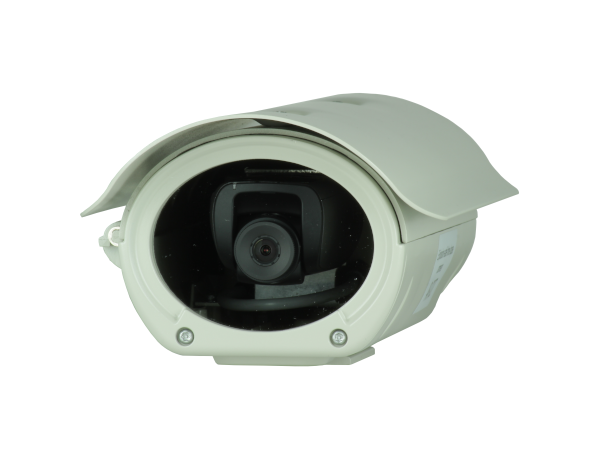

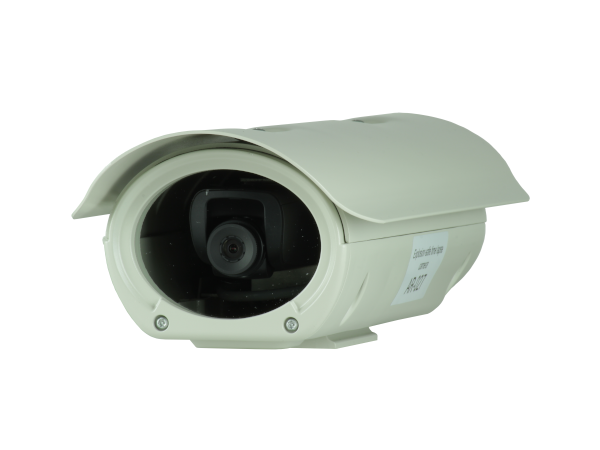

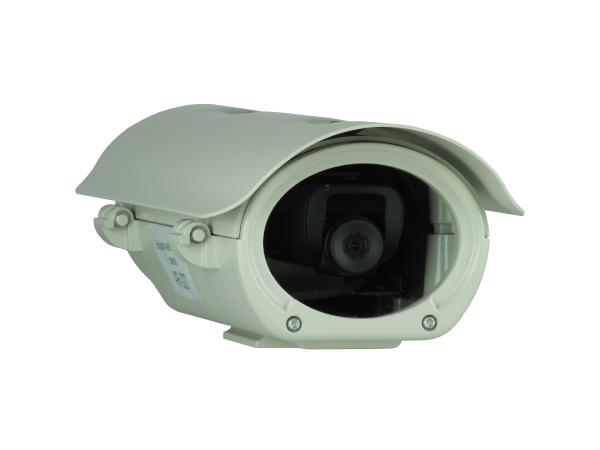

AR-027 Time lapse camera

AR-027 Time lapse camera for zone 2 and zone 22With a timelapse camera, activities can be recorded over a longer period of time. Think of monitoring a construction project, larger infrastructural works or the construction of ships. With the development of an explosion-proof variant, these options are now also available for explosion-hazardous areas classified as zone 2 and zone 22.

To create an explosion-safe solution, a “restricted breathing” housing according to EN 60079-15:2010 was used. This housing could be used because the camera does not produce sparks or heat in normal operation. To increase the gas tightness, the impact-resistant polycarbonate window was fixed in the housing and the tap holes for the cable glands were hermetically sealed with a blind plug and synthetic resin. The housing is also provided with an extra casing (sun shroud) to reduce heating of the housing caused by direct sunlight. With this, the “breathing” of the housing was reduced as much as possible.

To make the camera usable for a longer period, it has been connected to a high-capacity pack of non-chargeable batteries. Dependent on the camera settings, recordings up to 6 months are possible.

The Artidor time lapse camera is certified in accordance with European Directive 2014/34/EU (ATEX 114) for use in gas or dust hazardous areas and is CE marked.

Request for information or quotation?

Contact us for more information or if you are looking for a special execution of this product.
It will be our pleasure to help you!

Contact us Request a quote

Features
  • ATEX gecertificeerd
  • Geschikt voor gebruik in gas en stof omgevingen, zone 2 en 22
  • 1,3 megapixel
  • Brandpuntsafstand 35 mm
  • Video in AVI formaat, 1280 x 720 px
  • 16 GB SD kaart inbegrepen
  • Beschermingsgraad IP67
  • Gecoate aluminium behuizing
  • Montagesteun en adapter voor paalmontage optioneel
Technical properties
  • Explosieveiligheid
    II 3 G Ex nR IIC T6 Gc, II 3 D Ex tc IIIC T80°C Dc
  • Europese richtlijnen
    2014/34/EU (ATEX 114)
  • Toegepaste normen
    EN 60079-0:2018, EN 60079-15:2010 en EN 60079-31:2014
  • Sensor
    1/3" HDR sensor
  • Resolutie
    1,3 megapixel
  • Lensopening
    112°
  • Brandpuntsafstand
    35 mm
  • Diafragma
    F2.0
  • Video
    AVI formaat, 1280x 720 px
  • Opname interval
    1 seconde tot 24 uur
  • Geheugenkaart
    16 GB SD kaart voor 56.000 foto's in hoogste kwaliteit inbegrepen (max. 32 GB mogelijk)
  • Voedingsspanning
    6 V DC
  • Gebruiksduur
    6 maanden (daglicht instelling, interval 1 minuut, 16 uur / dag)
  • Behuizing
    Aluminium behuizing, siliconen afdichtingen
  • Beschermingsgraad
    IP67 volgens EN 60529
  • Montage
    Vier bevestigingsgaten 1/4" in lijn, op 51 en 74 mm van elkaar
  • Omgevingstemperatuur
    -10 °C tot +50 °C
  • Afmetingen behuizing
    430 x 164 x 120 mm (excl. montagesteun)
  • Gewicht
    2,5 kg
