AR-030 Door magnets

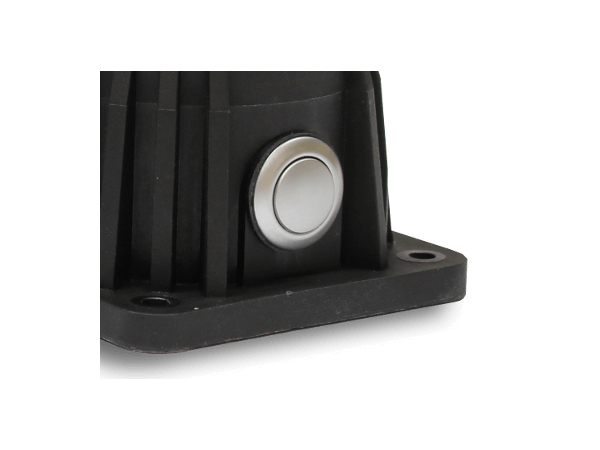

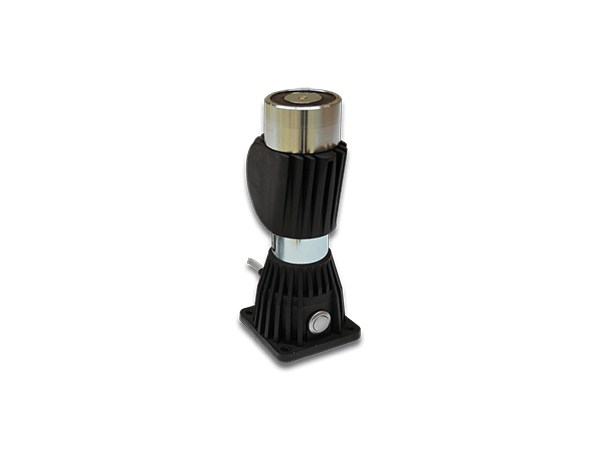

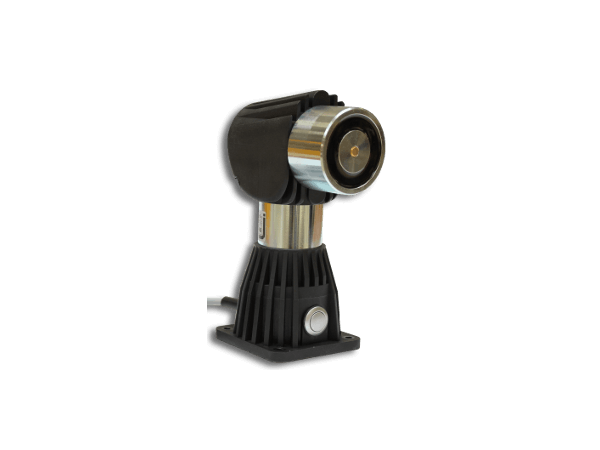

The explosion-safe Artidor AR-030 door magnet is a universally-applicable door magnet for floor or wall mounting. The magnetic head can easily be positioned horizontally or vertically. The door magnet is manufactured from impact-resistant plastic with a vandal-proof release button and a factory sealed cable, 5 meters long.
The door-retaining magnet system provides a completely reliable solution. For normal use, the doors are held open by electromagnets. In case of fire or alarm, the door magnets are switched off from the porter’s lodge or automatically by the fire alarm system, so that the door closers or springs close the doors immediately. The doors can still be opened, but close again straight afterwards.
The Artidor AR-030 door magnet is explosion-safe and certified in accordance with the European ATEX Directive 2014/34/EC (ATEX 114) and is CE marked.
Other versions are available on request.
Share this page:
Features
- ATEX certified
- Method of protection against ignition Ex d
- For the passage of gases and liquids
- Minimal pressure losses
- Holds hardly any moisture and dries quickly
- Modern industrial design
- Easy to clean
- Stainless steel AISI 316
Technical properties
-
- Explosieveiligheid
- II 3 G Ex ic mc IIC T6 Gc; II 3 D Ex ic mc IIIC T80°C Dc
-
- Europese richtlijnen
- 2014/34/EU (ATEX 114) en 2014/30/EU (EMC)
-
- Toegepaste normen
- EN 60079-0:2018, EN 60079-11:2012 en EN 60079-18:2015 / A1:2017
-
- Voedingsspanning
- 24 V AC/DC ± 10%
-
- Nominale stroom
- 100 mA AC / 63 mA DC
-
- Vermogen
- 1,5 Watt
-
- Houdkracht
- 490 N
-
- Diameter magneet
- Ø50 mm
-
- Montageafstanden
- Vloer/plafond montage: 150 mm, wandmontage: 175 mm
-
- Inschakeltijd
- 100%
-
- Materiaal
- Zwarte kunststof ankerplaat en behuizing, vernikkelde magneet
-
- Beschermingsgraad
- IP65 volgens EN 60529
-
- EN 1155 corrosieklasse
- 3 (hoge weerstand tegen corrosie)
-
- Aansluiting
- Aangegoten kabel, 3 x 1 mm², lengte 5 meter
-
- Omgevingstemperatuur
- -25 °C tot +50 °C
-
- Gewicht
- 770 gram
