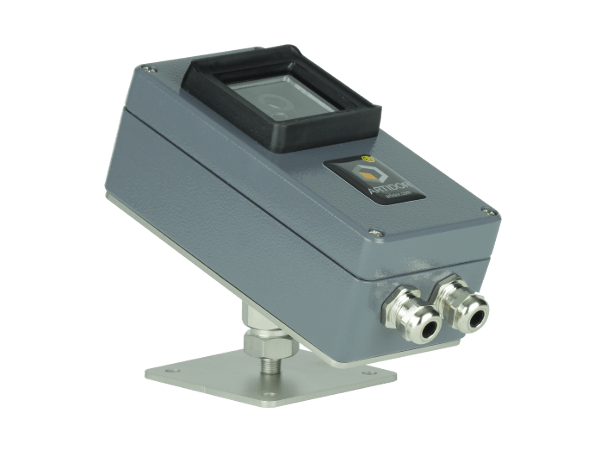

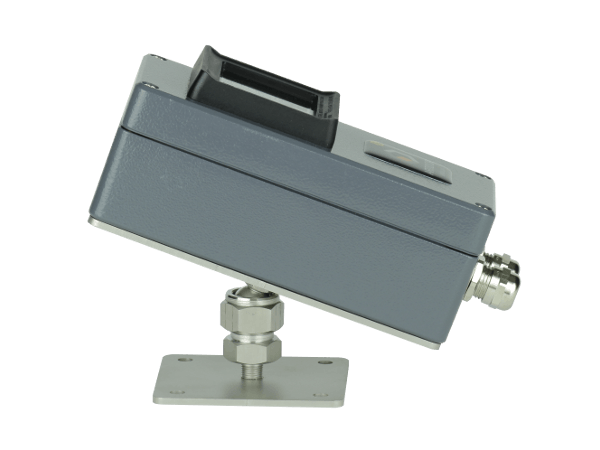

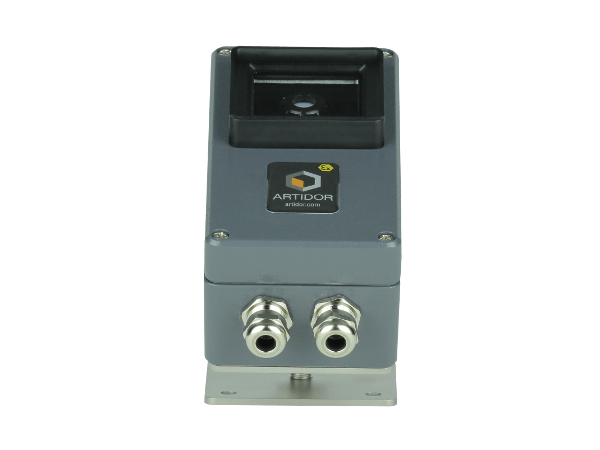

AR-022 Twilight switch
The Artidor AR-022 twilight switch is based on a highly sensitive photodiode and modern electronics and offers an electrical output that can deliver up to 4.000 VA on pure resistive or light inductive loads and an additional potential free contact.
The twilight switch can be applied successfully in circulation areas, staircases, storage spaces, cooling and freezing cells and business areas where safety and good visibility are important.
The twilight switch meets the latest explosion safety requirements and can be applied in a wide range of locations with potentially explosive atmosphere as a result of gas or dust.
The Artidor AR-022 twilight switch is certified in accordance with European Directive 2014/34/EU (ATEX 114) for use in gas or dust hazardous areas and is CE marked
Share this page:
Features
- ATEX certified
- Suitable for use in gas and dust hazardous areas, classified as Zone 2 and 22
- Ingress protection level IP66
- Coated aluminum housing
- Maximum output power 4.000 VA
- Light sensitivity 10 - 300 Lux
- Time delay ± 1 minute
- Mounting bracket included
Technical properties
-
- Explosieveiligheid
- II 3 G Ex nR IIC T6 Gc, II 3 D Ex tc IIIC T80°C Dc
-
- Europese richtlijnen
- 2014/34/EU (ATEX 114) en 2014/30/EU (EMC)
-
- Toegepaste normen
- EN 60079-0:2018, EN 60079-15:2010 en EN 60079-31:2014
-
- Lichtgevoelige cel
- Fotodiode
-
- Instelbereik
- 10 - 300 Lux
-
- Vertraging
- ± 1 minuut
-
- Voedingsspanning
- 230 V AC, 50 Hz
-
- Schakelvermogen AC1
- 4.000 VA (Ohmse en licht inductieve wisselstroombelastingen)
-
- Nominale stroom bij 250 VAC
- 16 A continu
-
- Nominale stroom bij 24 VDC
- 2 A (potentiaalvrije contacten 1 - 2)
-
- Uitgangen
- Geschakelde 230 V AC uitgang (L', N2) en potentiaalvrij contact (1, 2)
-
- Elektrische aansluitingen
- Schroefklemmen 8 x 2,5 mm²
-
- Materiaal
- Gietaluminium behuizing (RAL 7015, leigrijs), venster van veiligheidsglas in een polyamide frame
-
- Aansluiting
- M20 kabelwartels (2x) geschikt voor kabeldiameters van 6 - 14 mm
-
- Beschermingsgraad
- IP66 volgens EN 60529
-
- Montagebeugel
- Roestvaststalen montagebeugel met bevestigingsgaten Ø6,5 (4x) op een afstand van 60 x 60 mm
-
- Omgevingstemperatuur
- -20 °C tot +50 °C
-
- Afmetingen behuizing
- 160 x 80 x 128 mm (incl. montagebeugel)
-
- Gewicht
- 1.330 gram (incl. montagebeugel)
