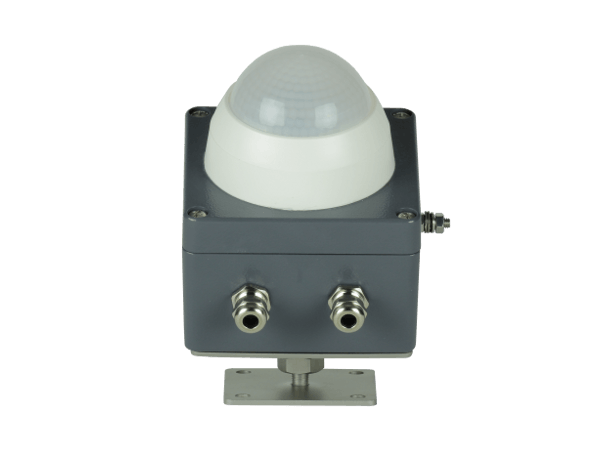

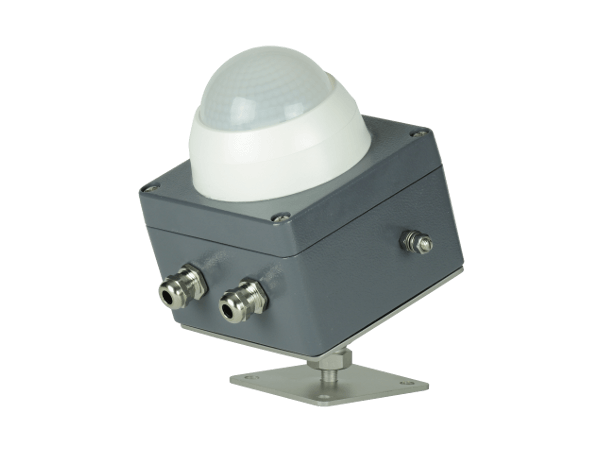

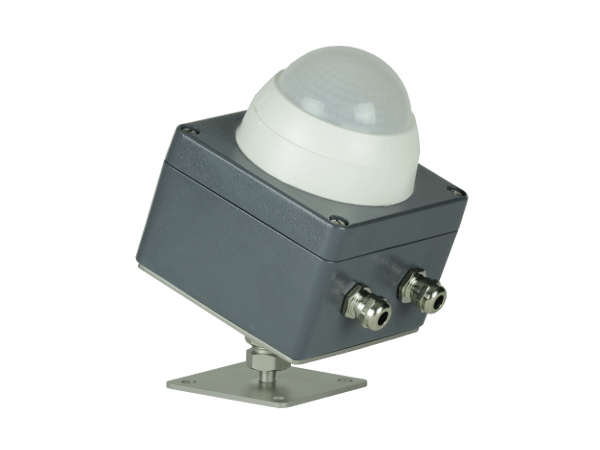

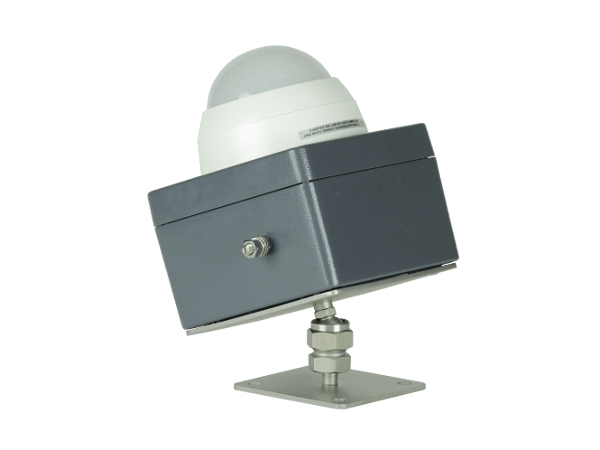

AR-024 Occupancy sensor

AR-024 Occupancy sensor for zone 2 and zone 22The explosion-safe Artidor AR-024 occupancy detector is based on passive infrared technology and capable of detecting movements of heat sources. Thanks to the wide opening angle and its 10 m range, this detector is suitable for monitoring large areas.

The occupancy detector is designed for use inside large buildings for example warehouses and combines energy saving and the protection of the environment in addition to convenient lighting.

Motion detectors switch the light depending on movements and the ambient light. The sensor itself does not emit any radiation and is therefore called “passive”. Unlike motion detectors, occupancy detectors can also switch off lighting if there is sufficient daylight, because of their advanced mixed light measurement (the principle on which occupancy detectors are based). Do not install detectors near heat sources like air-conditioning units, lights or radiators. The sensor electronics offers a potential free contact for switching up to 1,150 VA load.

The occupancy detector is mounted on top a coated aluminum housing. The explosion safety to gas and dust is arranged by the appliance of protection degrees against ignition "Increased safety", “Molding” and “Protected by enclosure”.

The Artidor occupancy detector is certified in accordance with the European ATEX Directive 2014/34/EU (ATEX 114) for use in gas or dust hazardous areas and is CE marked.

Request for information or quotation?

Contact us for more information or if you are looking for a special execution of this product.
It will be our pleasure to help you!

Contact us Request a quote

Features
  • ATEX gecertificeerd
  • Geschikt voor gebruik in gas en stof omgevingen, zone 2 en 22
  • Beschermingsgraad IP65
  • Gietaluminium behuizing
  • Registratiehoek cirkelvormig 360°
  • Reikwijdte ovaal gebied van 24 bij 44 m
  • Schemerinstelling: 10 – 2.000 Lux
  • Tijdsinstelling 15 seconden - 30 minuten
  • Montagehoogte 2 - 10 m
  • Inclusief montagebeugel
Technical properties
  • Explosieveiligheid
    II 3 G Ex ec mc IIC T6 Gc, II 3 D Ex mc tc IIIC T80°C Dc
  • Europese richtlijnen
    2014/34/EU (ATEX 114) en 2014/30/EU (EMC)
  • Toegepaste normen
    EN 60079-0:2018, EN 60079-7:2015 / A1:2018, EN 60079-18:2015 / A1:2017 en EN 60079-31:2014
  • Sensor
    Passief infrarood; 0,8 W opgenomen vermogen
  • Montagehoogte
    2 – 10 m

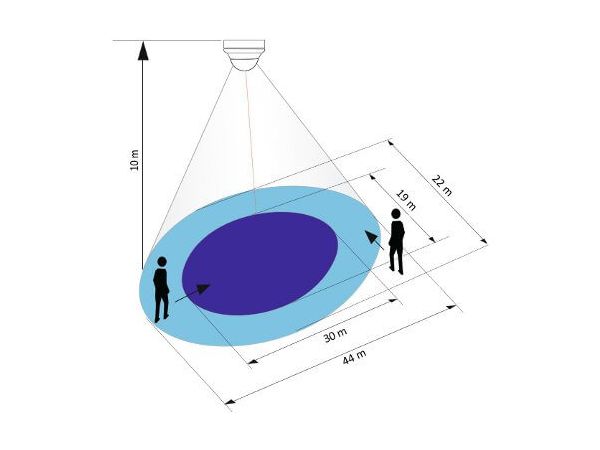

  • Reikwijdte
    Ovaal gebied van 24 bij 44 m
  • Registratiehoek
    Cirkelvormig 360°
  • Schemerinstelling
    10 – 2.000 Lux
  • Tijdinstelling
    15 seconden – 30 minuten
  • Voedingsspanning
    230 VAC ± 10%
  • Schakelvermogen AC1
    1.150 VA bij 230 V
  • Uitgangen
    Potentiaalvrij contact
  • Elektrische aansluitingen
    Schroefklemmen 8 x 2,5 mm²
  • Materiaal
    Gietaluminium behuizing (RAL 7015, leigrijs), kabelwartels messing vernikkeld
  • Aansluitingen
    M20 kabelwartels (2x) geschikt voor kabeldiameters van Ø6 tot Ø14 mm
  • Beschermingsgraad
    IP65 volgens EN 60529
  • Montagebeugel
    Roestvaststalen montagesteun met bevestigingsgaten Ø 6,5 (4x) op een afstand van 60 x 60 mm
  • Omgevingstemperatuur
    -25 °C tot +50 °C
  • Afmetingen behuizing
    120 x 120 x 195 mm (inclusief montagesteun, exclusief kabelwartels)
  • Afmeting melder
    65 x Ø98 mm
  • Gewicht
    1.860 gram (inclusief montagesteun)
