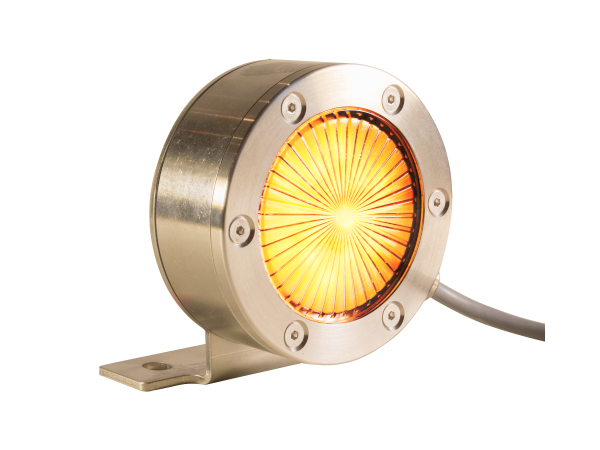

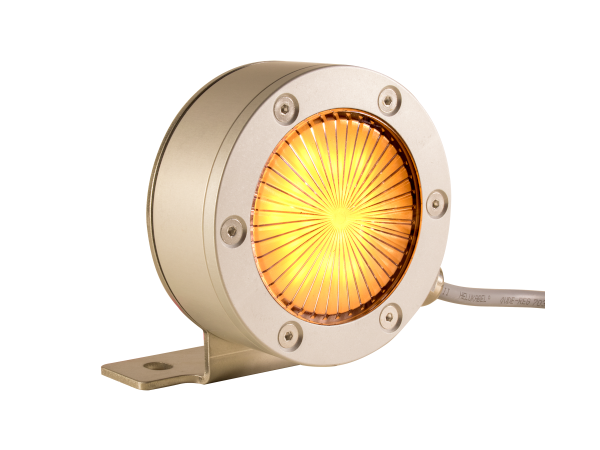

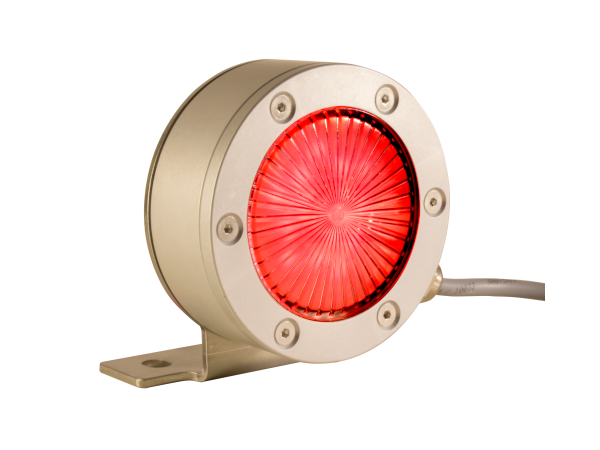

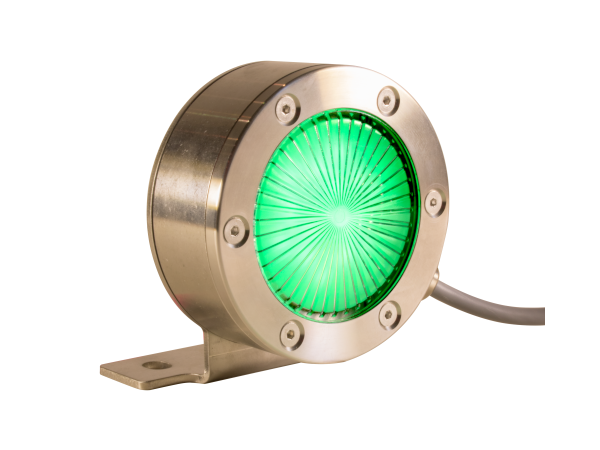

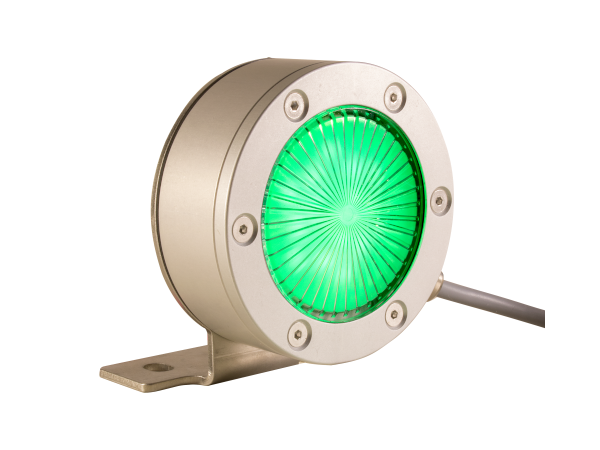

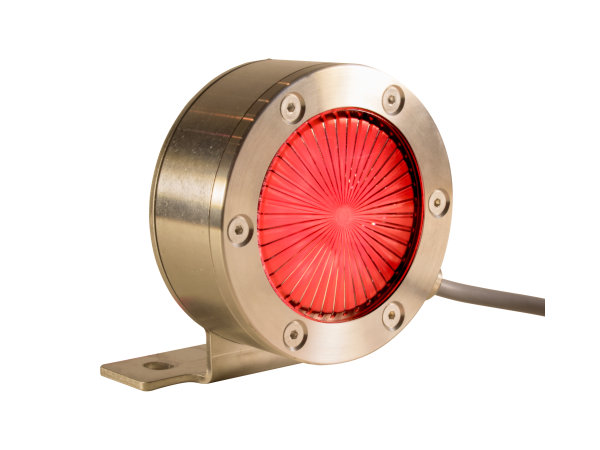

AR-044 LED Warning light
Artidor's AR-044 explosion-safe LED warning light is designed for use under the most demanding conditions. The robust stainless steel housing, the 4 mm thick impact-resistant polycarbonate window, the O-ring seal and molded electronics ensure that the lamp is completely impervious to water and salt.
The latest generation LEDs ensure a clearly perceptible visual signal. Dependent on the execution, the light will burn continuously or it blinks at a frequency of 1 Hertz. The warning light can be ordered either with a radial cable connection or with a connection on the back of the lamp. This makes the lamp highly suitable for use as a warning light on control cabinets.
The connection cable has a standard length of 5 meters. For application under less demanding conditions there is also a version available with an anodized aluminum housing.
The Artidor AR-044 LED warning light is explosion-safe and certified in accordance with European Directive 2014/34/EU (ATEX 114) and is CE marked. This makes the warning light suitable for use in zone 2 and zone 22.
For use in zone 1 and 21, the almost identical AR-048 is available.
Share this page:
Features
- ATEX certified
- Suitable for use in gas and dust environments, Zone 2 and 22
- Light color red, yellow / amber or green
- Continuous lighting or blinking, user selectable
- AISI 316 stainless steel or anodized aluminum housing
- Polycarbonate (PC) impact-resistant window
- Ingress protection level IP65
- 24 - 48 VDC, 4 Watt
- Fixed cable, 5 meters
Technical properties
-
- Explosion safety
- II 3 G Ex mc IIC T4 Gc, II 3 D Ex mc IIIC T135°C Dc
-
- European directives
- 2014/34/EU (ATEX 114) and 2014/30/EU (EMC)
-
- Applied standards
- EN IEC 60079-0:2018 and EN 60079-18:2015 / A1:2017
-
- Certificates
- Unit Assessment Certificate
-
- Light color
- Red (625 nm), yellow / amber (610 nm) or green (530 nm)
-
- Light intensity
- 195 lm
-
- Materials
- AISI 316 stainless steel or anodized aluminum housing, 4 mm impact-resistant polycarbonate window
-
- Ingress protection
- IP65 according to EN 60529
-
- Supply voltage
- 24 - 48 VDC ± 10%
-
- Nominal current
- 160 mA @ 24 VDC
-
- Connection
- Fixed cable, 4 x 0,75 mm², length 5 m
-
- Earth connection
- External, stainless steel, 4 mm²
-
- Ambient temperature
- -20 °C to +60 °C
-
- Dimensions
- Ø95 x 41 mm (excl. cable gland)
-
- Mounting
- Stainless steel bracket
-
- Weight
- 1.610 gram (stainless steel) / 830 gram (aluminum)
