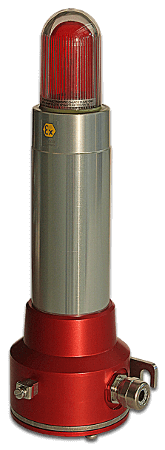

AR-077/211 Signal light with connection terminals
Artidor's explosion-safe AR-077 signal lights are designed to safely attract people's attention in areas with a possibly explosive atmosphere due to the release of gas or dust. They give a clearly detectable signal when a process is interrupted or when a situation occurs that requires immediate attention.

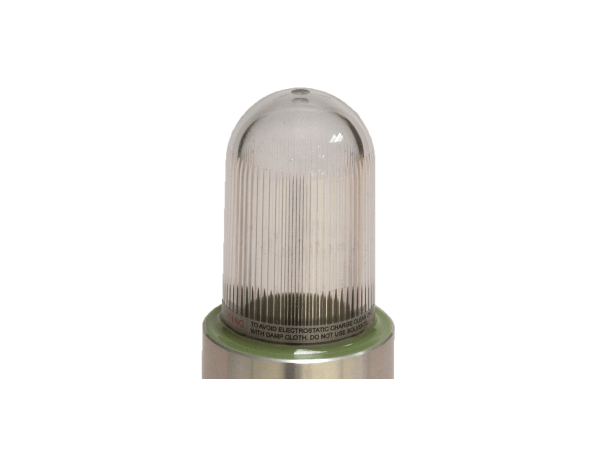

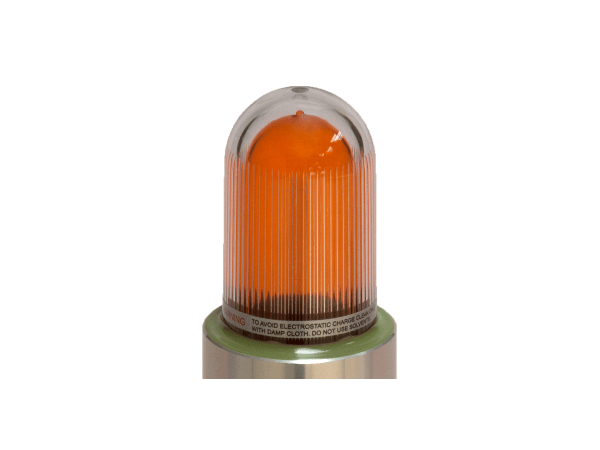

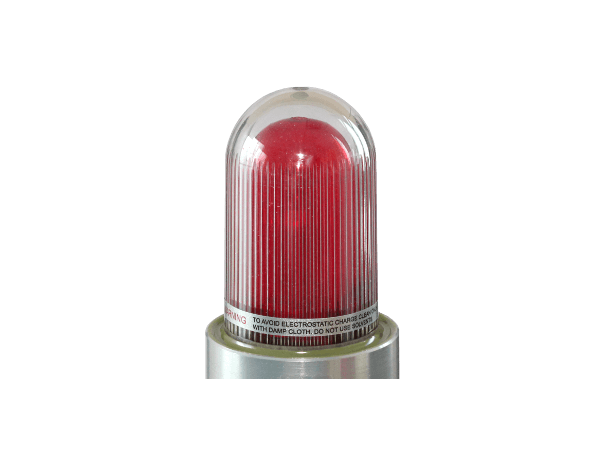

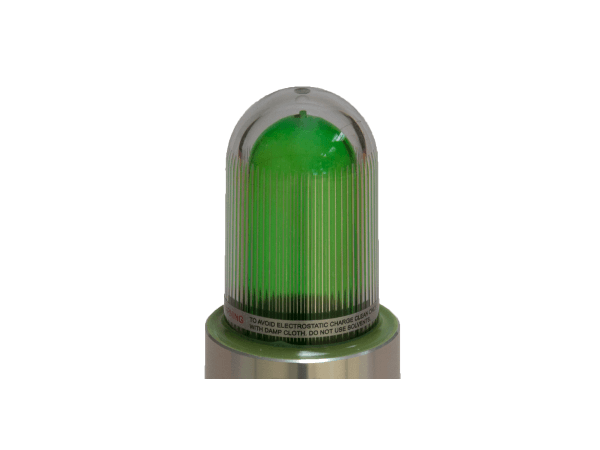

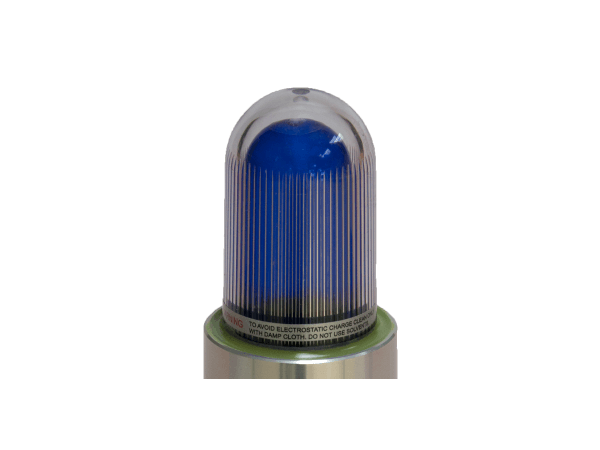

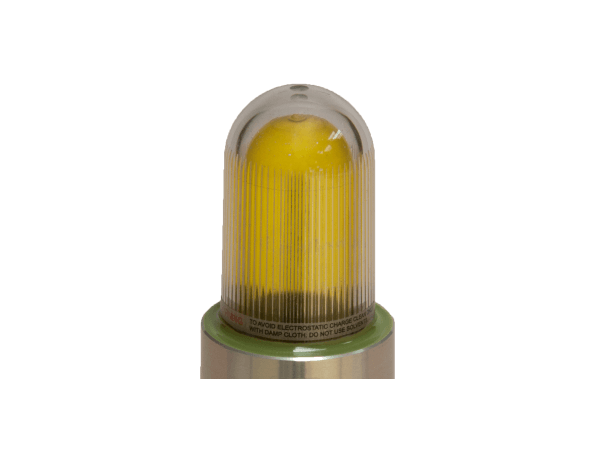

The transparent dome has light dispersion ribs on the inside for optimum visibility. There are six light colors available.

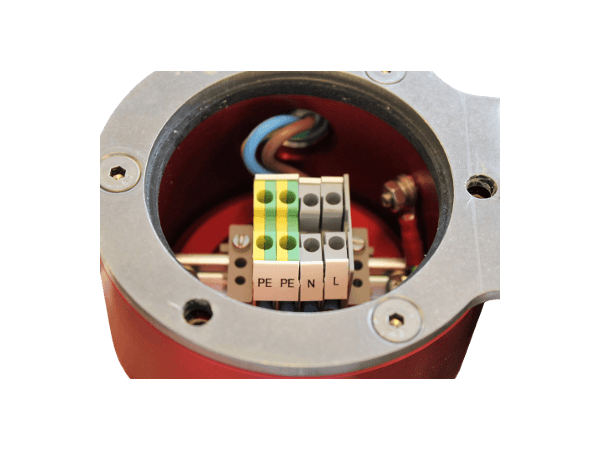

The lighting fixture has a connection compartment equipped with three connection terminals (L, N, PE). It is also possible to order for six connection terminals, bridged 2 by 2, to connect more signal lights.
The method of protection against ignition of the connection compartment is increased safety “Ex e”; no special skills are required for installation of the signal light.
The Artidor AR-077 signal lights are explosion-safe and certified according to the European ATEX directive 2014/34/EU (ATEX 114) and are CE marked.
Features
- ATEX gecertificeerd
- Geschikt voor gebruik in gas- en stofomgevingen, Zone 1, 2, 21 en 22
- Lichtkleur rood, oranje, geel, groen, blauw of helder
- Leverbaar met Xenon-flitsbuis
- Behuizing van geanodiseerd aluminium met RVS muurbeugel
- Lens uit slagvast polycarbonaat
- Beschermingsgraad IP66
- 48, 60, 115 V AC/DC en 230 V AC
- Aansluitklemmen 3 x 2.5 mm² (L, N en PE)
Technical properties
-
- Explosieveiligheid
- ATEX II 2 G Ex de IIC T6, II 2 D Ex tD A21 IP65 T80°C
-
- Europese richtlijnen
- 2014/34/EU (ATEX 114) en 2014/30/EU (EMC)
-
- Toegepaste normen
- EN 60079-0:2006, EN 60079-1:2004, EN 60079-7:2003, EN 61241-0:2006, EN 61241-1:2004, EN 50081-1, EN 50081-2
-
- EU Type onderzoekscertificaat
- KEMA 07ATEX0046
-
- Lenskleuren
- Rood, oranje, geel, groen, blauw en helder
-
- Lichtbron (Xenon)
- Xenon flitsbuis, 5 Joule, 1 flits/sec, 8·10E6 flitsen levensduur
-
- Materiaal
- Geanodiseerde aluminium behuizing, RVS muurbeugel
-
- Beschermingsgraad
- IP66 volgens EN 60529
-
- Voedingsspanningen
- 48, 60, 115 V AC/DC en 230 V AC
-
- Inschakelduur
- 100%
-
- Aansluitingen
- M20x1,5 (2x); kabelwartel Ø6-12 mm (1x) en blindplug (1x)
-
- Aansluitklemmen
- 3 x 2.5 mm² (L, N, PE)
-

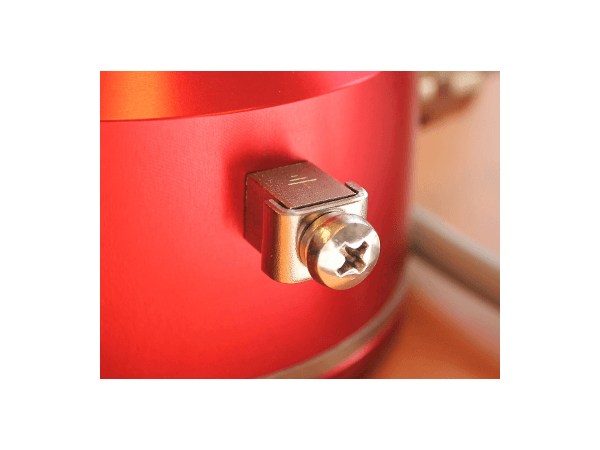

- Aardaansluiting
- Extern, roestvaststaal, 4 mm²
-
- Omgevingstemperatuur
- -20 °C tot +40 °C
-
- Afmetingen
- Ø93 x 310 mm (exclusief beugel en kabelwartel)
-
- Gewicht
- 1.610 gram
